QB60 Series

Brand name:LIP/OEM
Place of Origin:Zhejiang, China
Standard or Nonstandard:Standard
COLOR:ACCORDING TO CUSTOMER'S CHOICE

Inquiry Now

Technical data

Model

Power

Max.head

Max.Flow

Max.suct

In/outlet

Weight

inner box

Pack Size

PCS/CTNS

20'GP

kW

Hp

m

l/min

m

inch

kgs

cm

pcs

QB60

0.37

0.5

35

35

9

1"X1"

5

color box

27X13X16.5

4 or 6

3800

QB70

0.55

0.75

50

45

9

32X18X20

4

220

QB80

0.75

1

60

50

10



Product Description

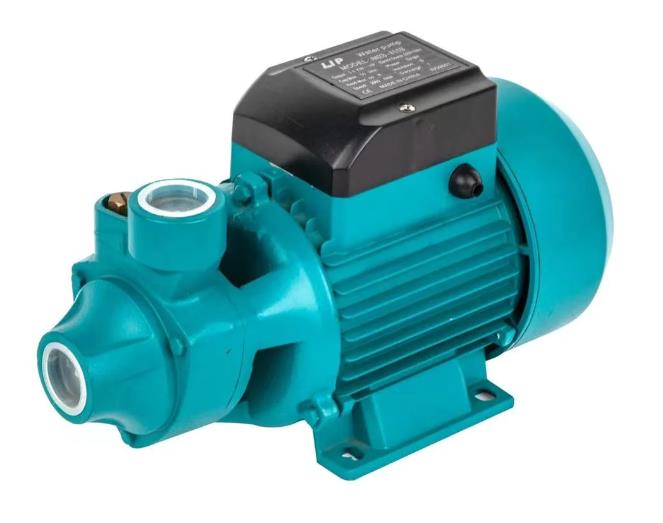

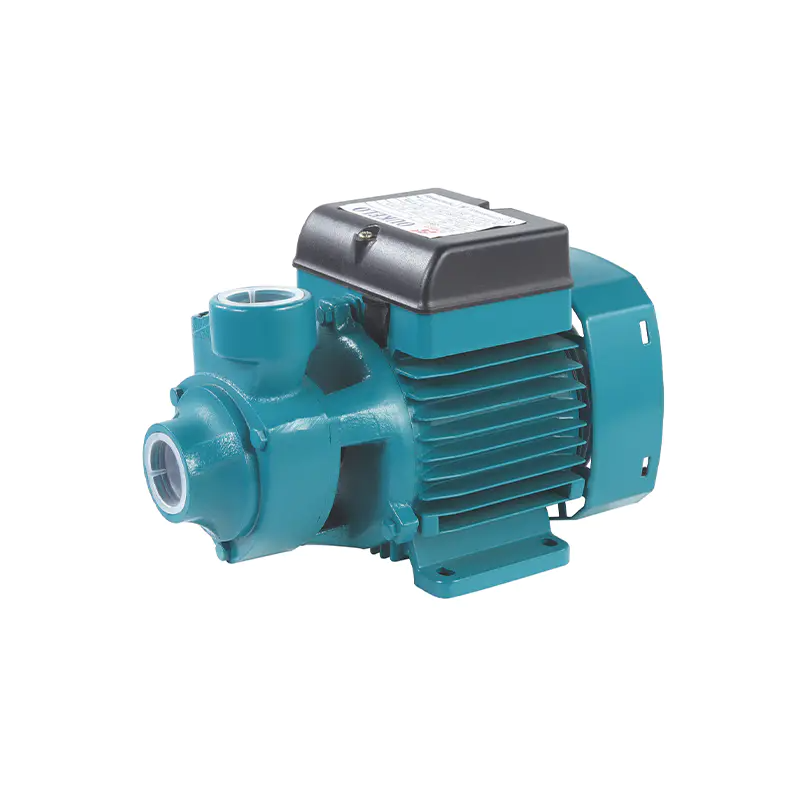

Household Application 0.37kw 1/2 hp Peripheral Electrical Micro Vortex Water Pump for Agriculture Irrigation



Product name:vortex pump
Material:1. Pump body: Cast Iron/Brass insert
2. Motor Support: Cast Iron
3. Impeller: Brass
4. Shaft with rotor: 45# Carbon Steel/Stainless Steel
5. Mechanical seal: Carbon/Ceramic
Operating conditions:1. Liquid temperature up to 60ºC
2. Ambient temperature up to 40ºC
3. Total suction lift to 8m
4. Continuous duty
Motor:1. Two-Pole induction motor (n=2900r. P. M. )
2. Insulation Class: B/F
3. Protection: IP44
Application:Family Homes,Irrigation and Agriculture,Washing and Cleaning,Vortex pump

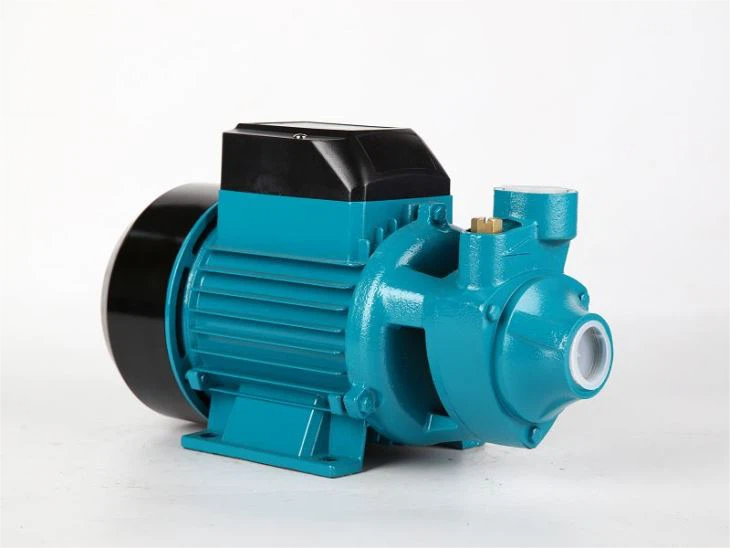

Household Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture Irrigation

Household Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture Irrigation

High efficiency
Strong power
Long service life

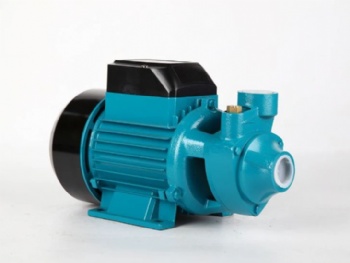

Household Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture Irrigation

Application:
-Volumetric water pumps able to offer high pressures in relation to comparatively low powers and which have particularly steady operating curves.
-They are qualified in domestic fittings, to in crease the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.
-For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.

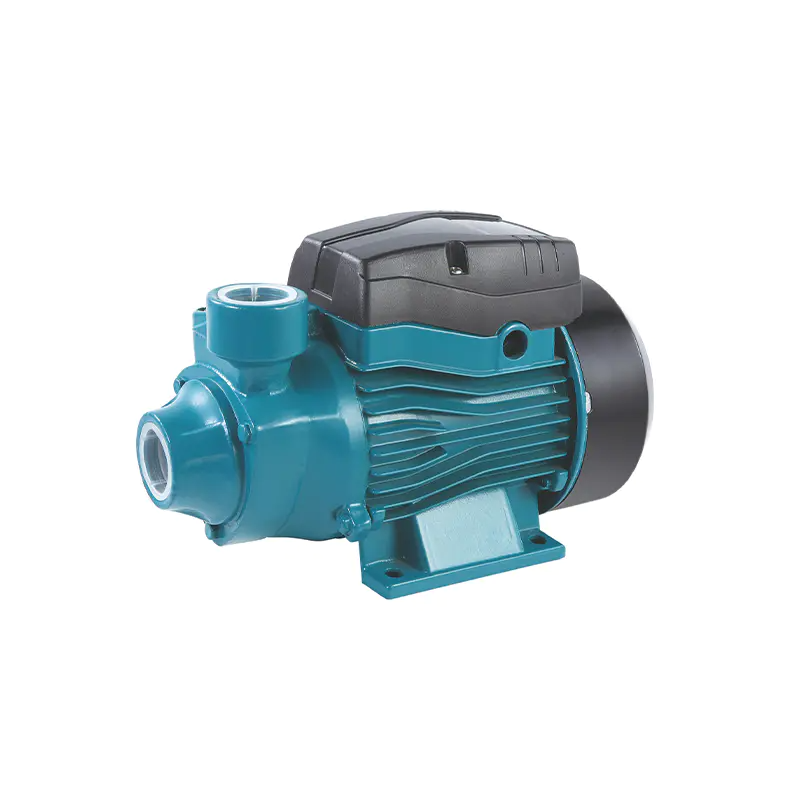

Household Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture Irrigation
Household Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture Irrigation
Taizhou Changhong Pump Co., Ltd. specializes in supplying various types of pumps, pressure controllers, motors, fans, air coolers, etc. There are many varieties and models of products, which are widely used in agriculture, mining, construction and industrial fields. The company is located in Daxi Town, Wenling City, Taizhou City, Zhejiang Province, China. It is close to National Highway 104 and 23 kilometers away from Taizhou Airport.

The company has strong strength, sophisticated testing equipment and perfect testing methods. Over the years, it has been producing and operating in strict accordance with the business philosophy of high quality and customer satisfaction. The products have won the praise of the public for their high quality, durability and perfect after-sales service.

Our company has also passed ISO9001 certification, CE. Now has a good reputation among customers in the Middle East, Europe, America, Africa and Latin America. We sincerely hope to establish cooperative relations with dealers, distributors and traders all over the world, mutual advantages and common development, and welcome new and old customers at home and abroad to negotiate business.


Household Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture IrrigationHousehold Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture IrrigationHousehold Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture IrrigationHousehold Application 0.37kw 1/2 HP Peripheral Electrical Micro Vortex Water Pump for Agriculture Irrigation
Q1. LIP PUMP is a factory or trading company?
A.We are a manufactory with more than 10 years pump production experience.

Q2. Where is your factory located?
A: Our factory is located in Daxi TownTaizhou CityZhejiang ProvinceChina.Taizhou city is close to ningbo Port.

Q3. Is OEM and ODM service available?
A: Yes.We supply flexible experience of OEM &ODM service.

Q4. What's your delivery time?
A. The sample can be sent to customer within 10~15 days.
The batch order can be shipped within 35 after receiving original L/C or TT deposit.

Q5. What are your payment terms?
A: 100%TT or irrevocable L/C at sight.
We accept 30% deposit and balance T/T against copy of Bill of Lading for repeat orders.

Q6. How about your warranty?
A.We offer 1-year product life guarantee and a generous 1-year warranty on all purchases that begin with the Bill of Lading.

Q7. How can I get some sample?
A.Sample are available.the buver is expected to cover the sample costs and freiaht.The sample costing can be deducted if you place batch order.

Q8.: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.

Q9: Do you have any certification?
A:YesCE &ISO9001 can be providedif customer need special certification for custom clearance we can also provide.
