CPM Series

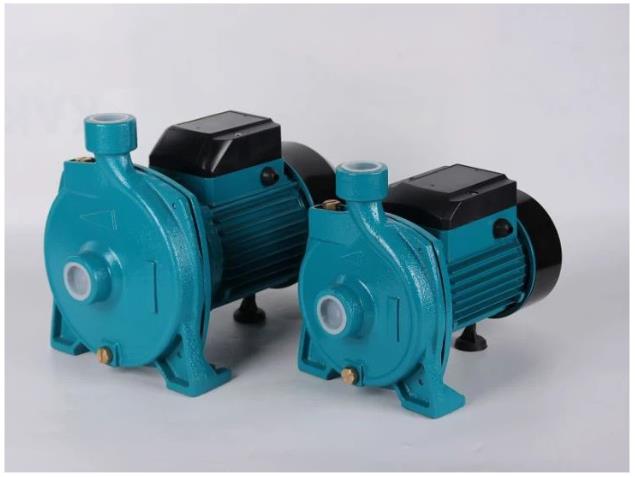

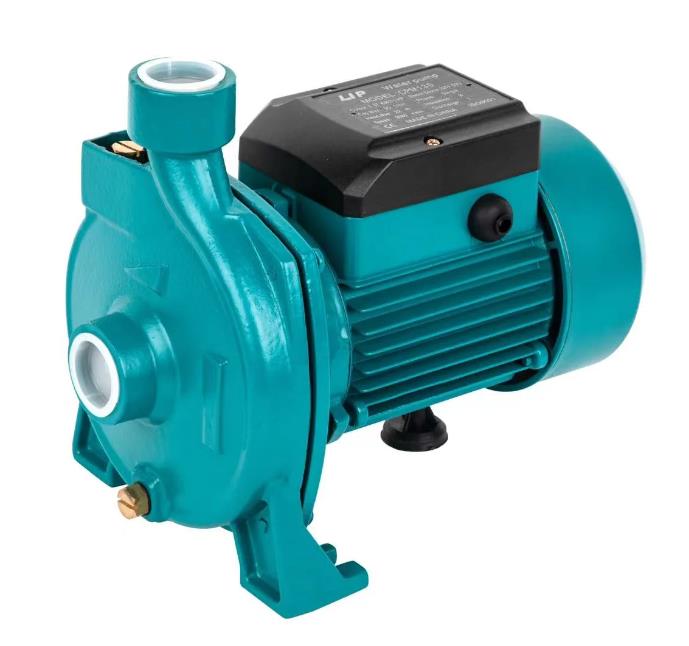

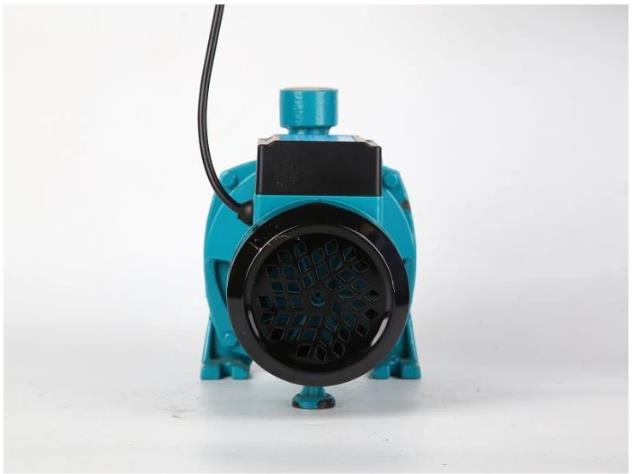

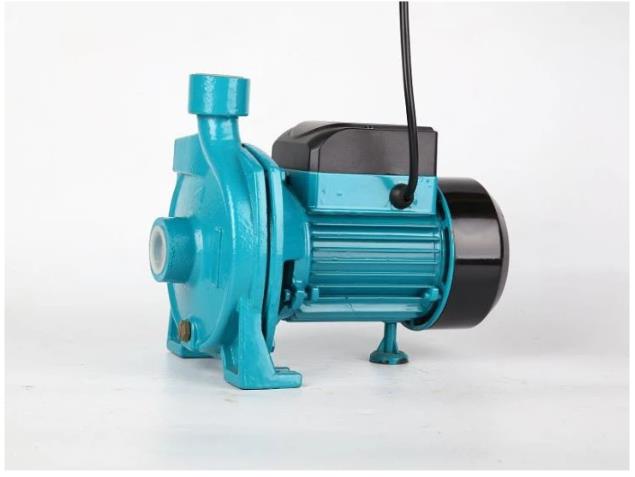

Product name:Single Phase Surface CPM Electric Water centrifugal Pump
Horsepower:0.5HP~2.0HP
Model Number:CPM Series
Material:Iron Pump Head,Alu Pump Casting,Brass Impeller
Voltage:110V/60HZ,220V/50HZ
Other:Min. Order: 100 Pieces

Inquiry Now

1inch 370w 80L/Min electric motor centrifugal pump for water supply Agricultural Irrigation Water Pump



Product name:Centrifugal Pump
Material:1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Shaft with rotor: 45# Carbon Steel/Stainless Steel
5. Mechanical seal: Carbon/Ceramic
6. Diffuser: Noryl
Operating conditions:1. Max working pressure 8 bar
2. Liquid temperature up to 60ºC
3. Ambient temperature up to 40ºC
4. Total suction lift to 9m
5. Continuous duty
Motor:1. Two-Pole induction motor (n=2900r. P. M. )
2. Insulation Class: B/F
3. Protection: IP44
Application:Family Homes,Irrigation and Agriculture,Washing and Cleaning

1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump
PARAMETER DATA:

ModelPowerMax.head (m)Max.flow (L/min)Max.suct
( m )
Inlet/OutletPacking dimension (mm)
CPM130370W208081'' X 1''275x165x225
CPM146550W269081'' X 1''305x200x245
CPM158750W3010081'' X 1''305x200x245
CPM1701100W3612081'' X 1''380x350x320
CPM1801100W3812081-1/4'' X 1''380x350x320
CPM1901500W3813081'' X 1''380x350x320
CPM2001500W4013081-1/4'' X 1''380x350x320

1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump

1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump




Application:

-Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.

-Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.

-To be used in flow irrigation systems in gardening and agriculture and industrial fittings


1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump
1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump
Taizhou Changhong Pump Co., Ltd. specializes in supplying various types of pumps, pressure controllers, motors, fans, air coolers, etc. There are many varieties and models of products, which are widely used in agriculture, mining, construction and industrial fields. The company is located in Daxi Town, Wenling City, Taizhou City, Zhejiang Province, China. It is close to National Highway 104 and 23 kilometers away from Taizhou Airport.

The company has strong strength, sophisticated testing equipment and perfect testing methods. Over the years, it has been producing and operating in strict accordance with the business philosophy of high quality and customer satisfaction. The products have won the praise of the public for their high quality, durability and perfect after-sales service.

Our company has also passed ISO9001 certification, CE. Now has a good reputation among customers in the Middle East, Europe, America, Africa and Latin America. We sincerely hope to establish cooperative relations with dealers, distributors and traders all over the world, mutual advantages and common development, and welcome new and old customers at home and abroad to negotiate business.


1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump1inch 370W 80L/Min Electric Motor Centrifugal Pump for Water Supply Agricultural Irrigation Water Pump
Q1. LIP PUMP is a factory or trading company?
A.We are a manufactory with more than 10 years pump production experience.

Q2. Where is your factory located?
A: Our factory is located in Daxi TownTaizhou CityZhejiang ProvinceChina.Taizhou city is close to ningbo Port.

Q3. Is OEM and ODM service available?
A: Yes.We supply flexible experience of OEM &ODM service.

Q4. What's your delivery time?
A. The sample can be sent to customer within 10~15 days.
The batch order can be shipped within 35 after receiving original L/C or TT deposit.

Q5. What are your payment terms?
A: 100%TT or irrevocable L/C at sight.
We accept 30% deposit and balance T/T against copy of Bill of Lading for repeat orders.

Q6. How about your warranty?
A.We offer 1-year product life guarantee and a generous 1-year warranty on all purchases that begin with the Bill of Lading.

Q7. How can I get some sample?
A.Sample are available.the buver is expected to cover the sample costs and freiaht.The sample costing can be deducted if you place batch order.

Q8.: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.

Q9: Do you have any certification?
A:YesCE &ISO9001 can be providedif customer need special certification for custom clearance we can also provide.
